เครื่องลับลวดทังสเตนเชื่อม TIG WIG4 | Electrode Grinding Machine WIG 4
Category : Drill Grinding Machine
รายละเอียด
ระบบอัตโนมัติ ปรับมุมได้ สำหรับลวเชื่อมทังสเตน ขนาด dia. 1.0/1.6/2.0/2.4/3.2/4.0 มม.รายละเอียดเพิ่มเติม
| Precise results Sharpens TIG electrodes precise and simple in longitudinal shape. Provides repeatable welding results on automatic systems, respectively robot welding. ✔ with automatic drive and feeding ✔ functional handle ✔ centric tip to central axis in longitudinal direction ✔ stable arc ✔ for Ø 1,0 / 1,6 / 2,0 / 2,4 / 3,2 and 4,0 mm ✔ angle setting from 15° to 180° ALSO AVAILABLE AS WORKSTATION SOLUTION: Electrode sharpening machine WIG 4 + Machine cabinet + vacuum cleaner for dust exhaust |

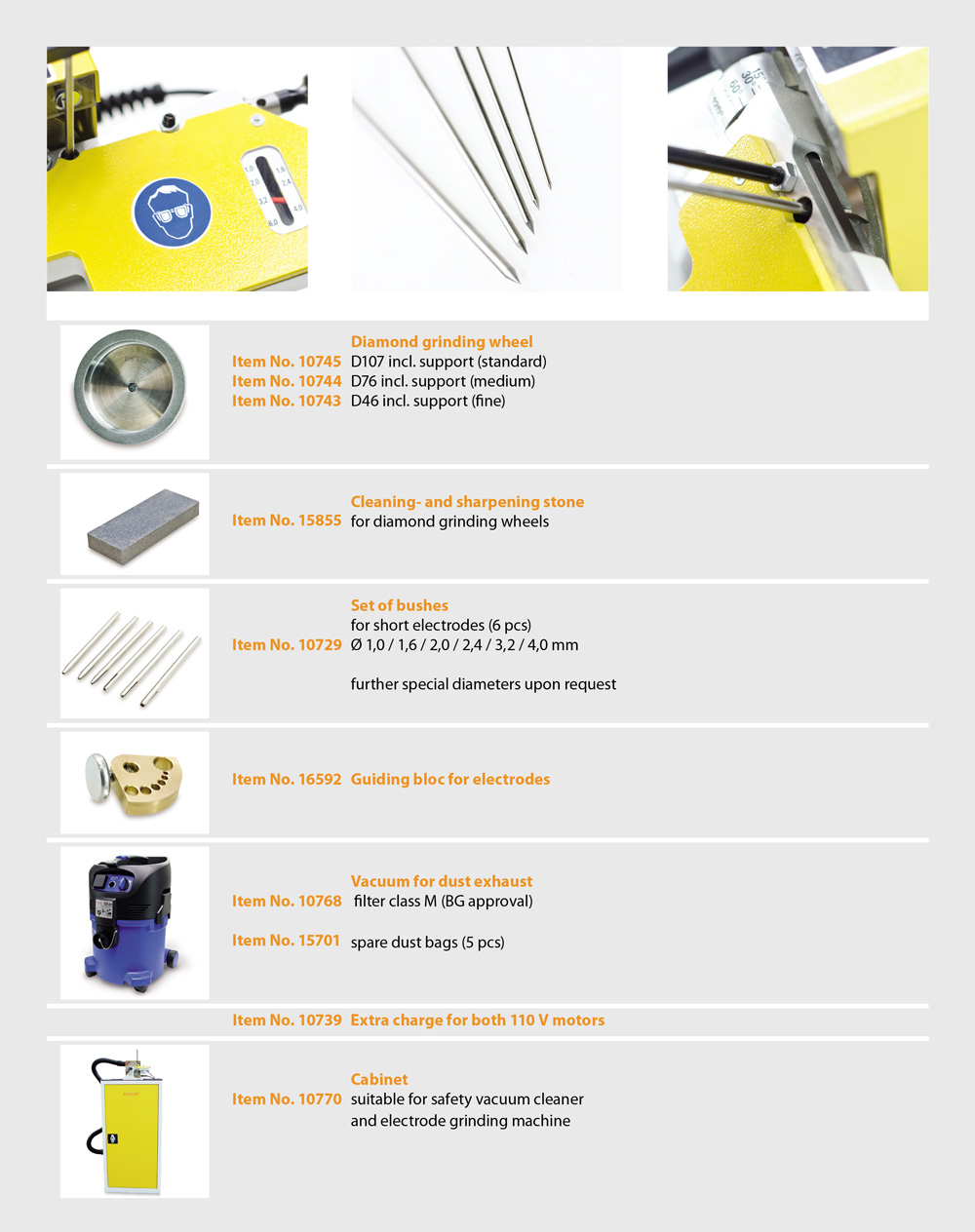

TECHNICAL DATA Diamond grinding wheel: Ø 125 mm Grinding motor: 230 V, 50 Hz, 0,05 kW, 2840 rpm-1 Motor for electrode drive: 230 V, 50 Hz, 375 rpm-1 Weight net: 6,8 kg Angle setting: 15° / 30° / 60° / 90° / 120° / 150° / 180° Diameter of electrodes: 1,0 / 1,6 / 2,0 / 2,4 / 3,2 / 4,0 mm Dim (L x W x H): 260 x 300 x 230 mm BASIC VERSION – Dianmond grinding wheel Ø 125 mm D107 – Adaptor or dust exhaust – Adjustment slide standard for electrodes Ø 1,0 / 1,6 / 2,0 / 2,4 / 3,2 / 4,0 mm Special sizes upon request |
 |
|
