เครื่องลับดอกสว่าน BSG 60 | Drill Grinding Machine BSG 60 - Basic Version
Category : Drill Grinding Machine
รายละเอียด
ดอกเจาะเหล็ก, ปูน, ไม้, สเตปดริล และเอ็นมิลล์
สำหรับดอกสว่าน dis. 3-60 มม.
รายละเอียดเพิ่มเติม

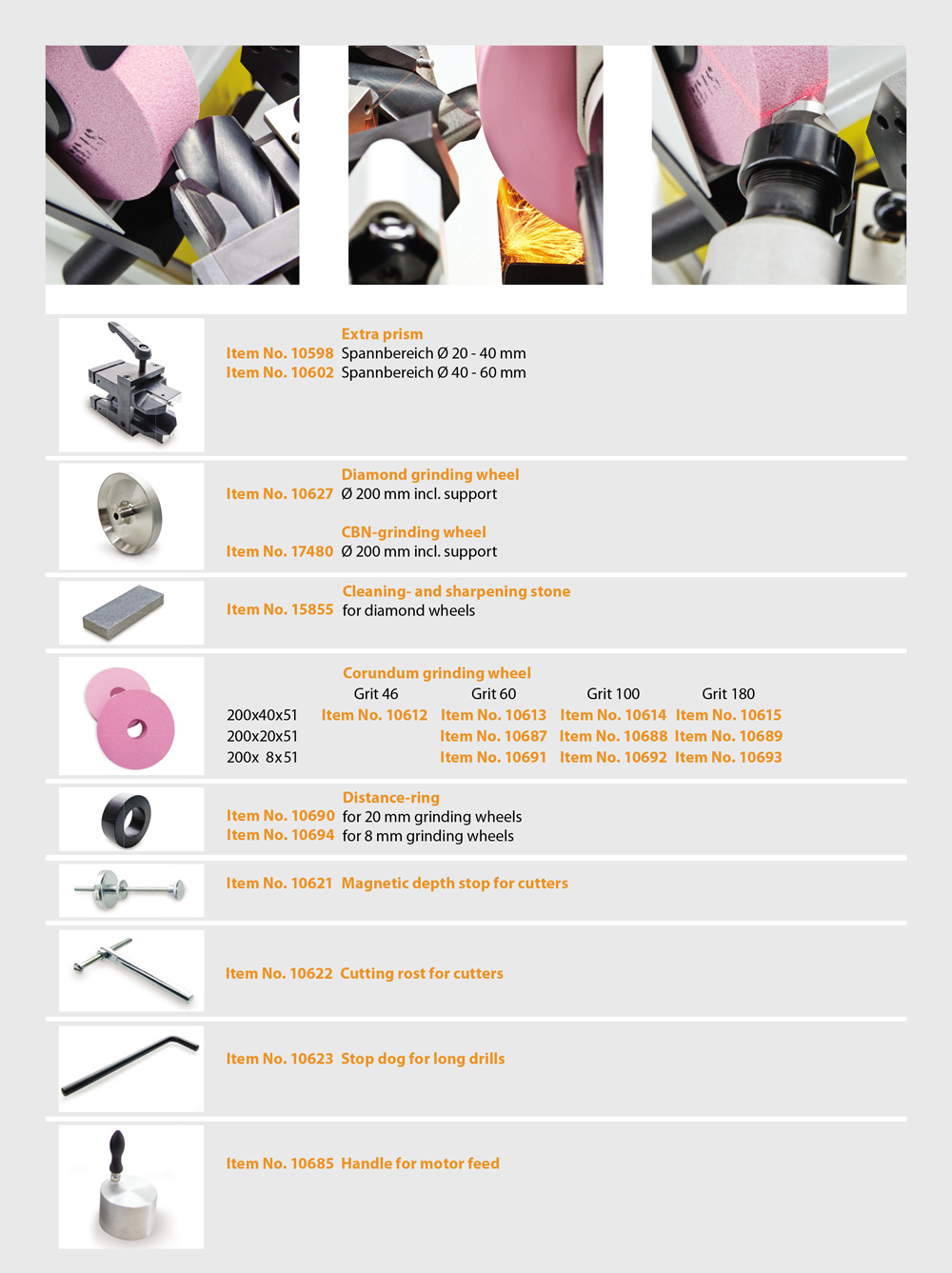

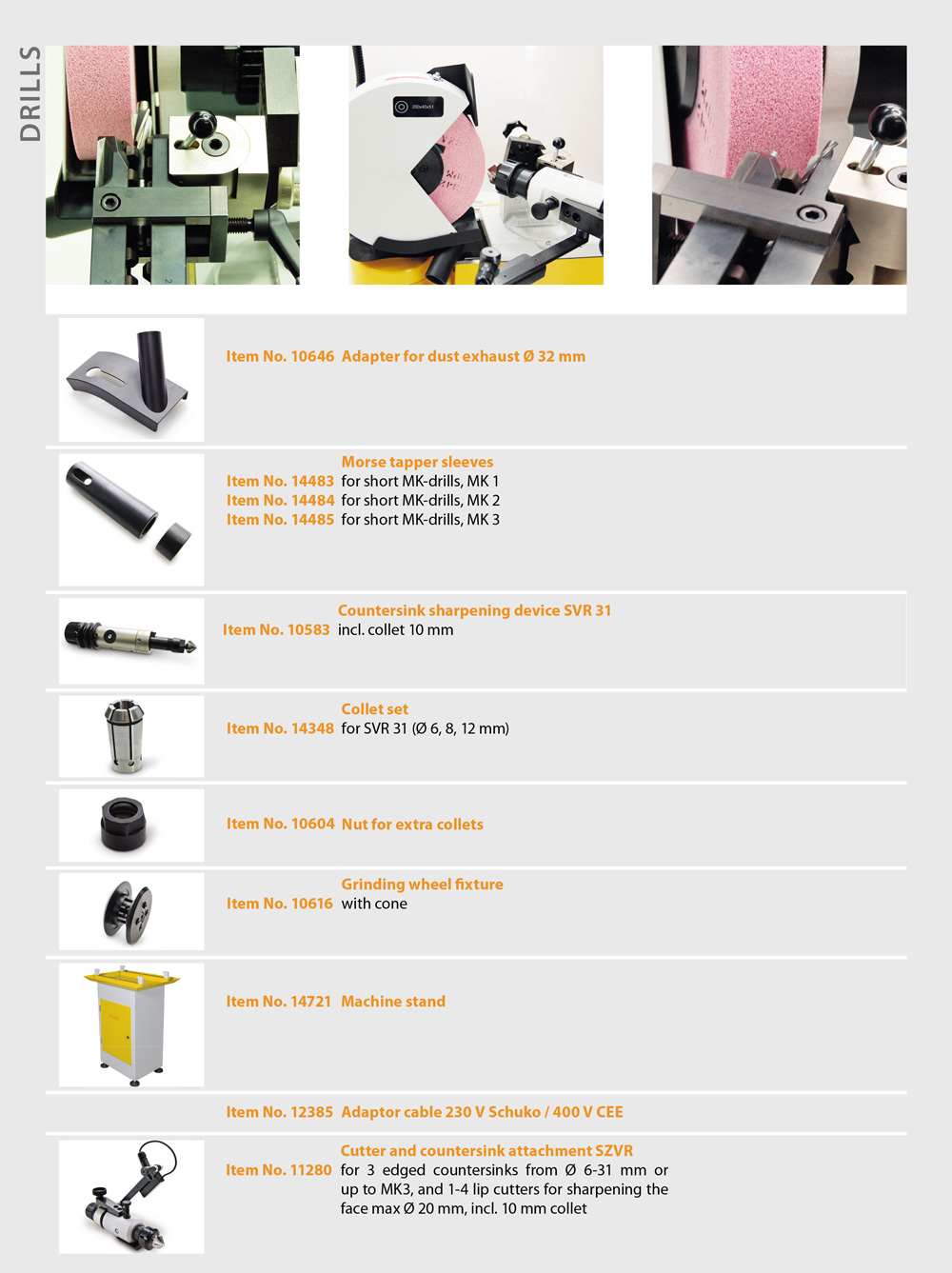

| The professional machine – Basic version The professional machine for supreme claims. For drills from Ø 3 – 60 mm. Precise, no servicing, 4 point linear guideways. Spindle system with adjustable needle bearings. Prism quick action system. ✔ clamping range from Ø 3 – 40 mm ✔ range extension to 60 mm by extra prism ✔ clearance- and top angle to be adjusted stepless ✔ patented prism reversing system ✔ web thinning ✔ optional: countersink-and cutter grinding adaptor SZVR |
TECHNICAL DATA Clamping range: Ø 3 to 60 mm Corundum grinding wheel: 200 x 40 x 51 mm Motor: 230 V, 50 Hz, 0,37 kW (also avaliable in 400 V, 110 V, 60 Hz ) Revolutions: 2800 rpm-1 Weight net: 59 kg Clearance- and top angle: to be adjusted stepless Dim (L x W x H): 570 x 330 x 520 mm BASIC VERSION – Prism from Ø 3 to 40 mm – Corundum grinding wheel Ø 200 mm grit 60 – Precision optical lens lighted – Grinding wheel dresser with rotating diamond – Granite base slap |
|
|
|
 |
|
 |
|
