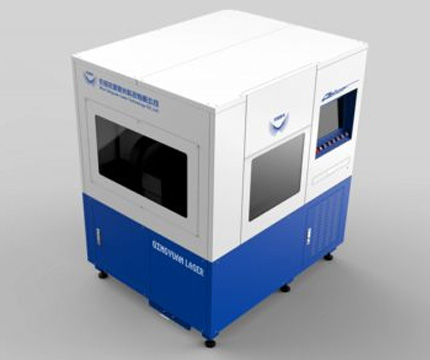

| Small Fiber Laser Cutting Machine
Category : Cutting Machine
รายละเอียด
Features:Low running cost
Low energy consumption
Low maintenance cost
High performance
High speed
High quality
High accuracy
High efficiency
Application:
Middle power Fiber Laser Cutting machine is widely used in processing of carbon steel, stainless steel, alloy steel, galvanized sheet, aluminium sheet high speed cutting. Typically use for glass metal frame and advertising characters/logos cutting production. Fiber Laser Cutter consists of laser generator, control system, motion system, optical system, cooling system, fume-extraction system, It adopts famous brand servo motor and transmission and guide structure with excellent performance to achieve good motion accuracy in high-speed state.
รายละเอียดเพิ่มเติม
Technical Parameter
Item |
Parameter |
500W |
|---|---|---|
1 |
Laser Generator | Imported or made in China Optional |
2 |
Laser Wavelength | 1070 mm |
3 |
Laser Repeat Frequency | CW |
4 |
Mechanical Driving System | Ball Screw, Tauwan |
5 |
PC System | Industrial control, EVOC, Taiwan |
6 |
X axis servo unit | 750W servo single driving, Fuji, Japan |
7 |
Y axis servo unit | 900W servo single driving, Fuji, Japan |
8 |
Z axis servo unit | 400W servo single driving, Fuji, Japan |
9 |
Limit Switches | NPN, Omron Japan |
10 |
Min Linewidth | 0.2 mm (for materials with thickness less than 0.4 mm) |
11 |
Max. Cutting Thickness | ≤6 mm for carbon steel, ≤4 mm for stainless steel |
12 |
Continued Working Time | ≥20 hours |
13 |
Max. Cutting Dimension | 50x50 cm |
14 |
Wortable Cutting Accuracy | 0.05 mm/m |
15 |
Repeated Positioning Precision | ± 0.05 mm |
16 |
Power Supply | Three-phase 5 wires AC 380V±5%, 50 Hz ± 1% |
 |
