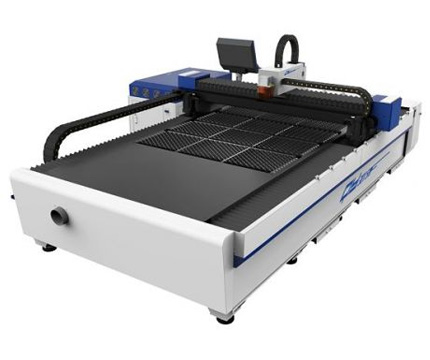

เครื่องตัดไฟเบอร์เลเซอร์ 1500W | Fiber Laser Cutting Machine 1500W
Category : Cutting Machine
รายละเอียด
รายละเอียดเพิ่มเติม
Technical Parameter
Item |
Parameter |
Laser Power 700W-4000W |
|---|---|---|
1 |
Laser Generator | IPG German, or Raycus made in China |
2 |
Mechanical driving system | Rack&Pinion, ATLANTA, German |
3 |
PC System | Industrial control, EVOC, Taiwan |
4 |
Max.Cutting Speed | 100 m/min |
5 |
Max.Acceleration | 1.0 G |
6 |
X/Y Positioning Accuracy | 0.05 mm/m |
7 |
X/Y Repeated Positioning Accuracy | ± 0.03 mm |
8 |
Machine tool power | 6 kW |
9 |
Machine Running Temperature | 0°C - 40°C |
10 |
Machine Running Humidity | < 90% |
11 |
Continued Working Time | ≥ 20 hours |
12 |
Max.Cutting Thickness | 0.5 mm-16 mm for carbon steel 0.5 mm-5 mm for stainless steel 0.5 mm-2 mm for galvanized steel, silicon steel |
13 |
Power Supply | Three-phase 5 wires AC 380V±5%, 50Hz±1% |
14 |
Processing wide (mm) | 1500 x 3000 |
15 |
Total Weight (kg) | 4500 |
16 |
Appearance of size (mm) | 5020 x 3770 x 1650 |
 |
